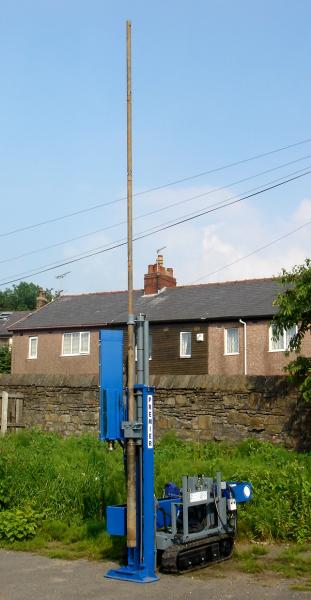

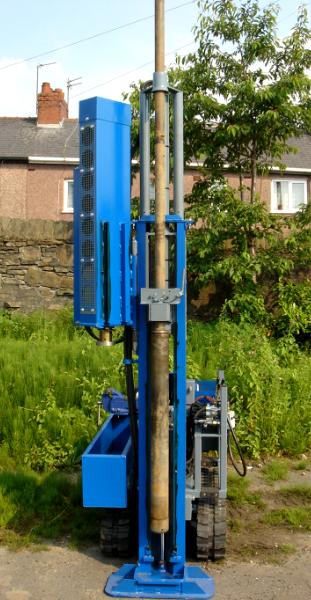

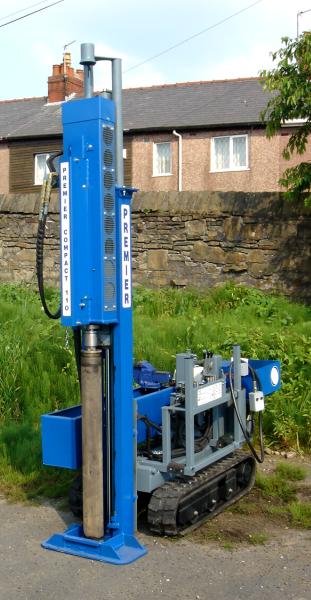

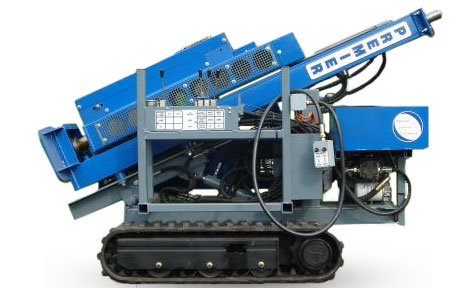

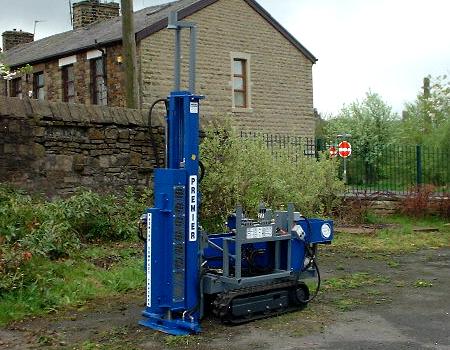

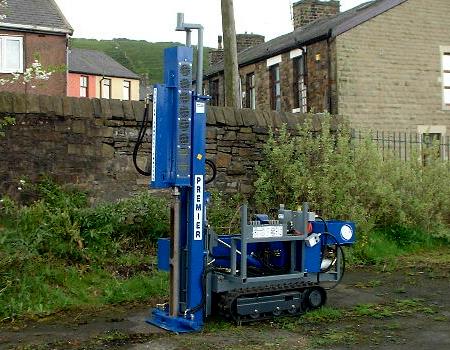

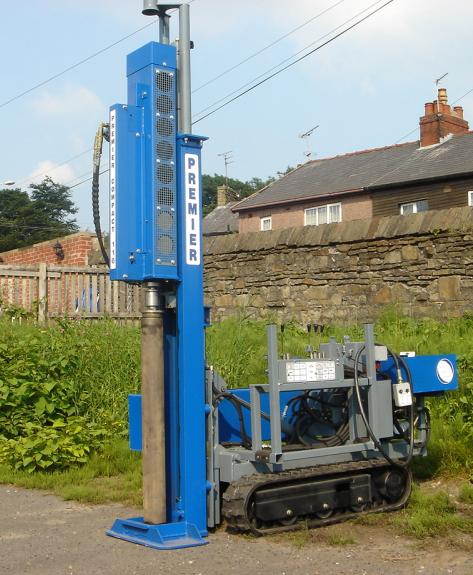

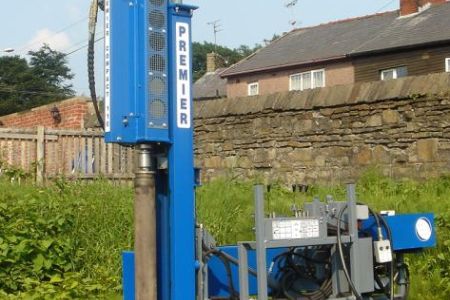

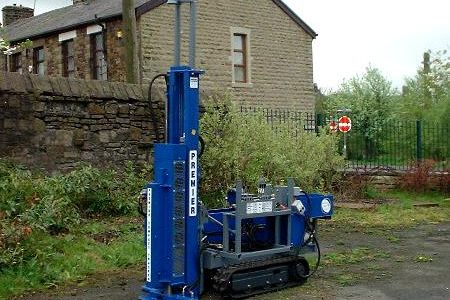

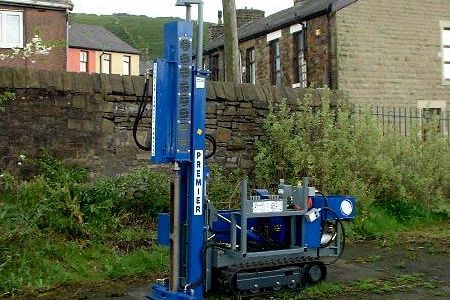

Premier 110 Windowless / Dynamic Sampler
Occupying a small footprint, this compact and extremely versatile rig is capable of a range of site investigation techniques in areas of restricted space and difficult access, including disturbed and undisturbed sampling, SPT and dynamic probing.
Mounted on a small crawler unit, the rig is easily transportable and simple to manoeuvre through tight spaces, causing very little disturbance to its surroundings.
Features include:
- Disturbed and undisturbed sampling, SPT and dynamic probing.
- Compact crawler mounted design.
- 2-piece drop hammer incorporated in mast assembly for recovery of casing and sampling tools.
- Mast assembly can be detached for remote operation.
- Hydraulic tilting undercarriage allows operation on inclined slopes of up to 30 degrees from horizontal.
- Deck area with storage capacity for all required drilling tools.
- Rotary concrete coring head available as an option. Useful when concrete and tarmac overlie the area to be sampled.
- 3 cylinder 19 HP diesel engine providing increased power and smoother operation. Easy to access for simple maintenance.
|
Engine / Chassis |
Honda 13 hp GX390 petrol engine with electric start | |
|
|
Hydraulic system | |
|
|
2 No. gear pumps 15 litres / min @ 180 bar | |
|

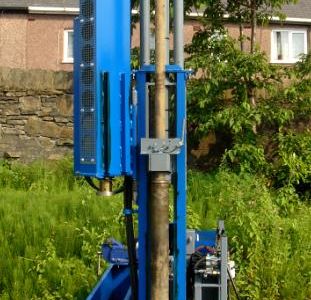

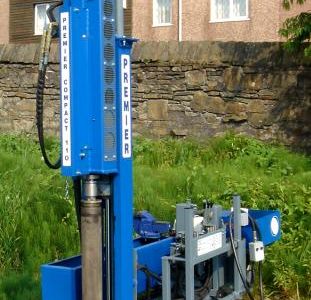

Mast assembly with fully enclosed automatic percussive device for DPSH / SPT and window / windowless sampling |
||
|
Automatic DPSH / SPT Pentrometer carriage. Hammer 63.5 kg x 760 mm fall x 35 blows / min |
||
| Carriage stroke | 1300 mm | |
| Push | 300 kg | |
| Vertical slide stroke | 300 mm | |
| Under carriage | ||
| Standard track length 1165 mm fixed @ | 750 mm | |
| Track width | 180 mm | |
| Ground bearing pressure | 0.25 kg / cm2 | |
| Max gradient | 30 deg | |
| Speed | 3 km/h | |
| Track controls | Remote track controller, enabling safer maneuverability of the machine | |
| Dimensions and weights. Standard machine (*no upper rod guide, ** no side basket) | ||

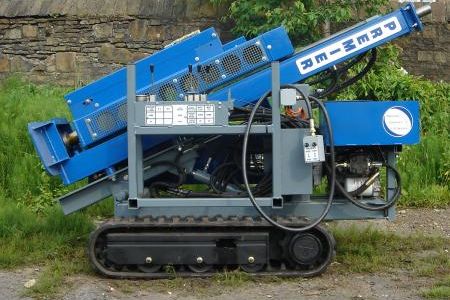

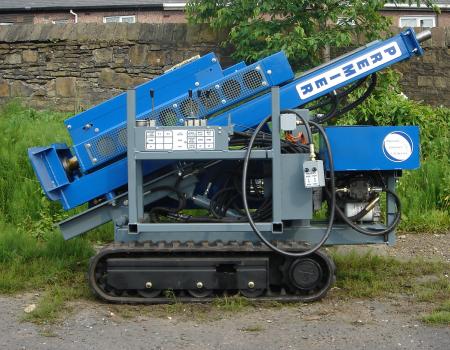

| Mast horizontal | Length 2000 mm * | |
| Width 750 mm ** | ||
| Height 1350 mm * | ||
| Weight 850 kg | ||

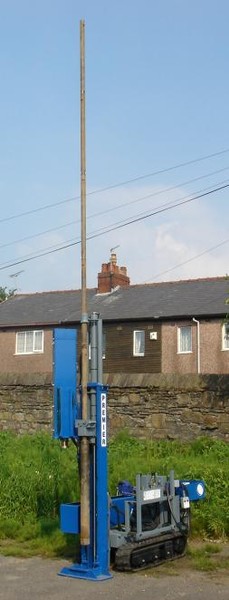

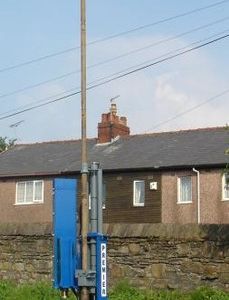

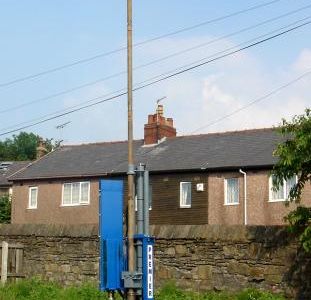

| Mast vertical | Length 2100 mm * | |
| Width 750 mm ** | ||
| Height 2200 mm * | ||

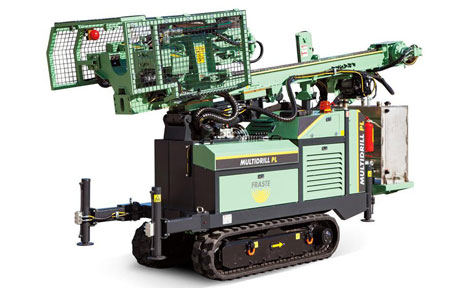

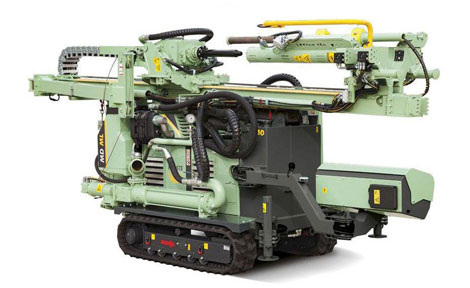

Other Rigs
