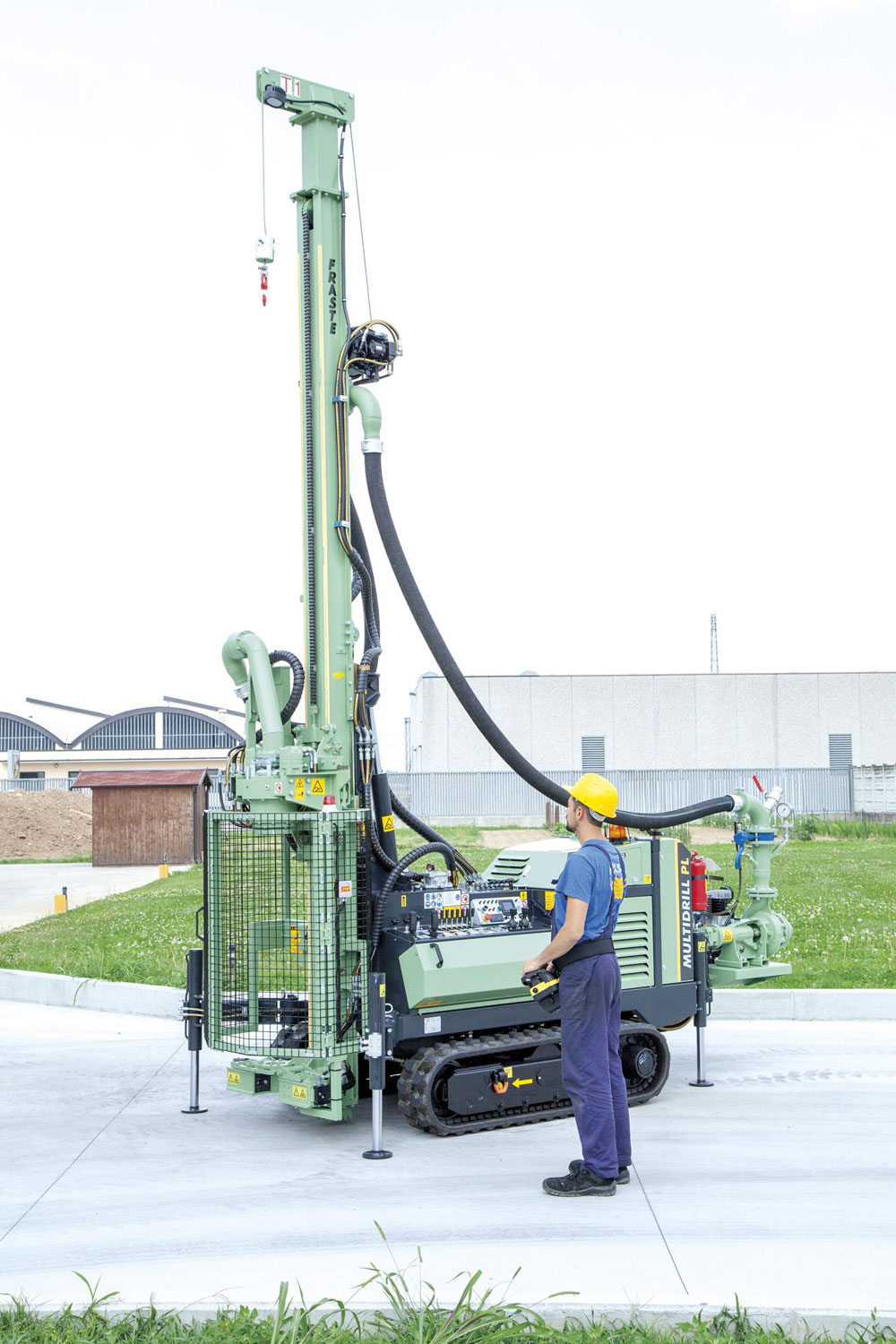

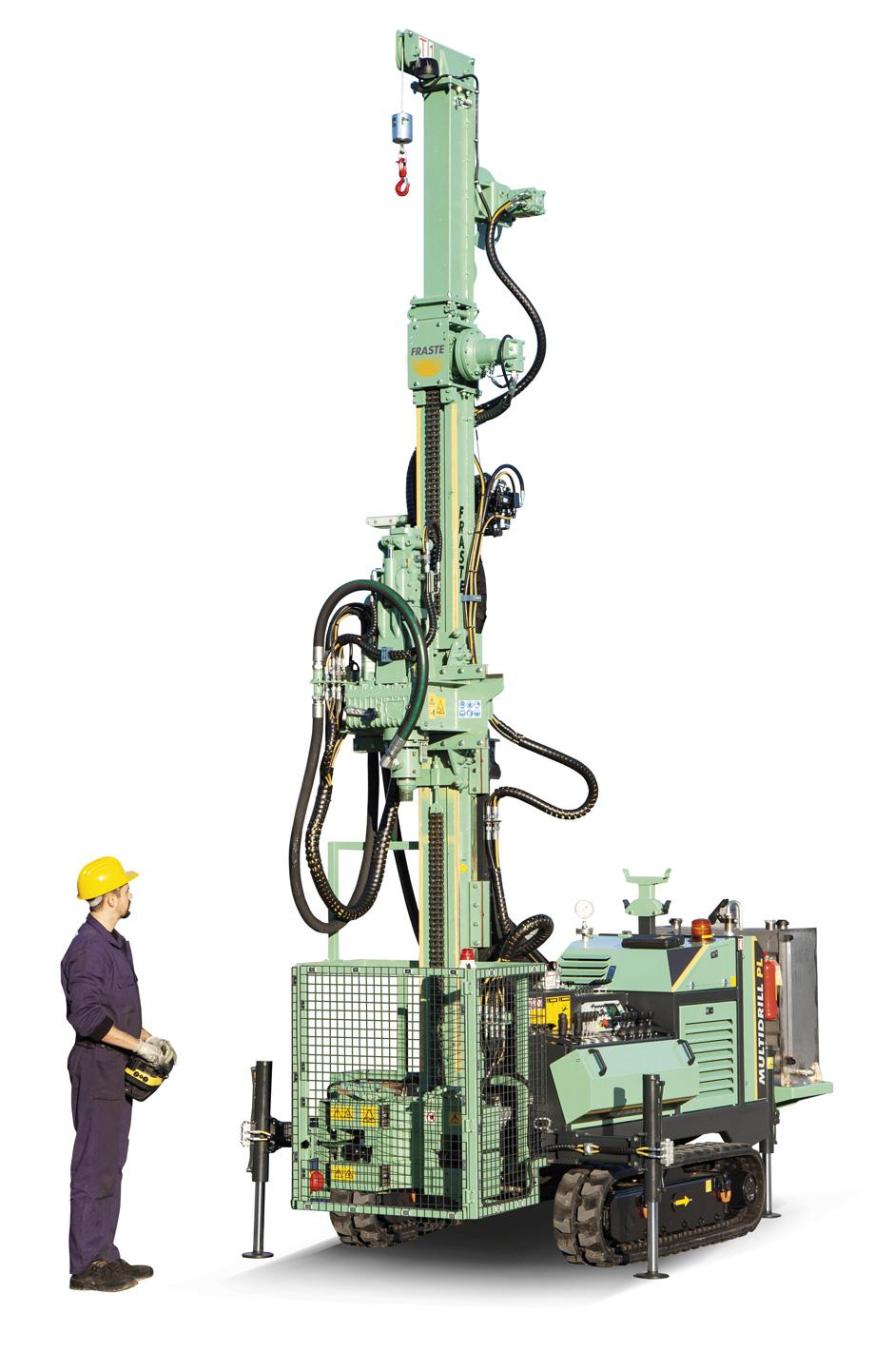

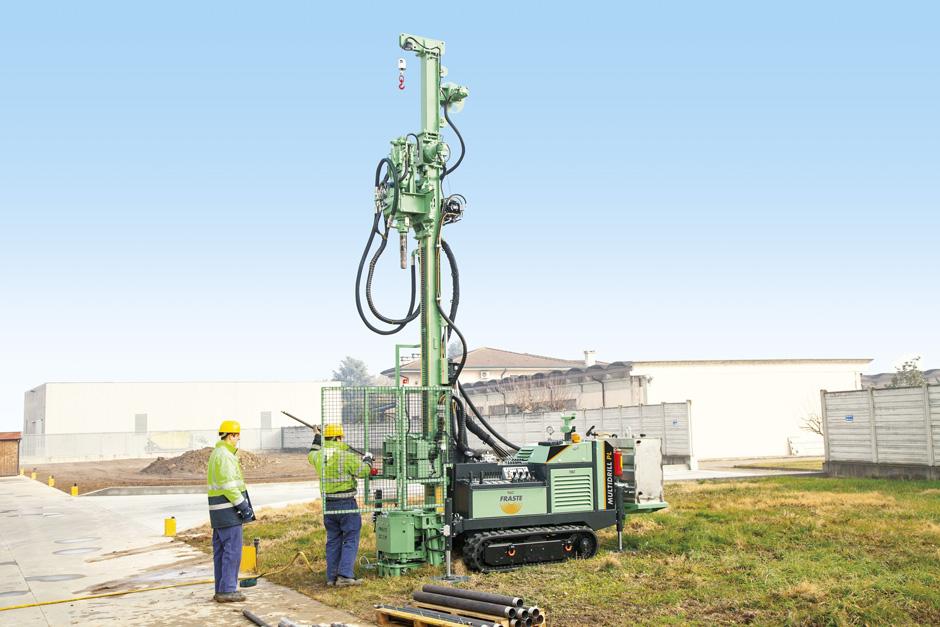

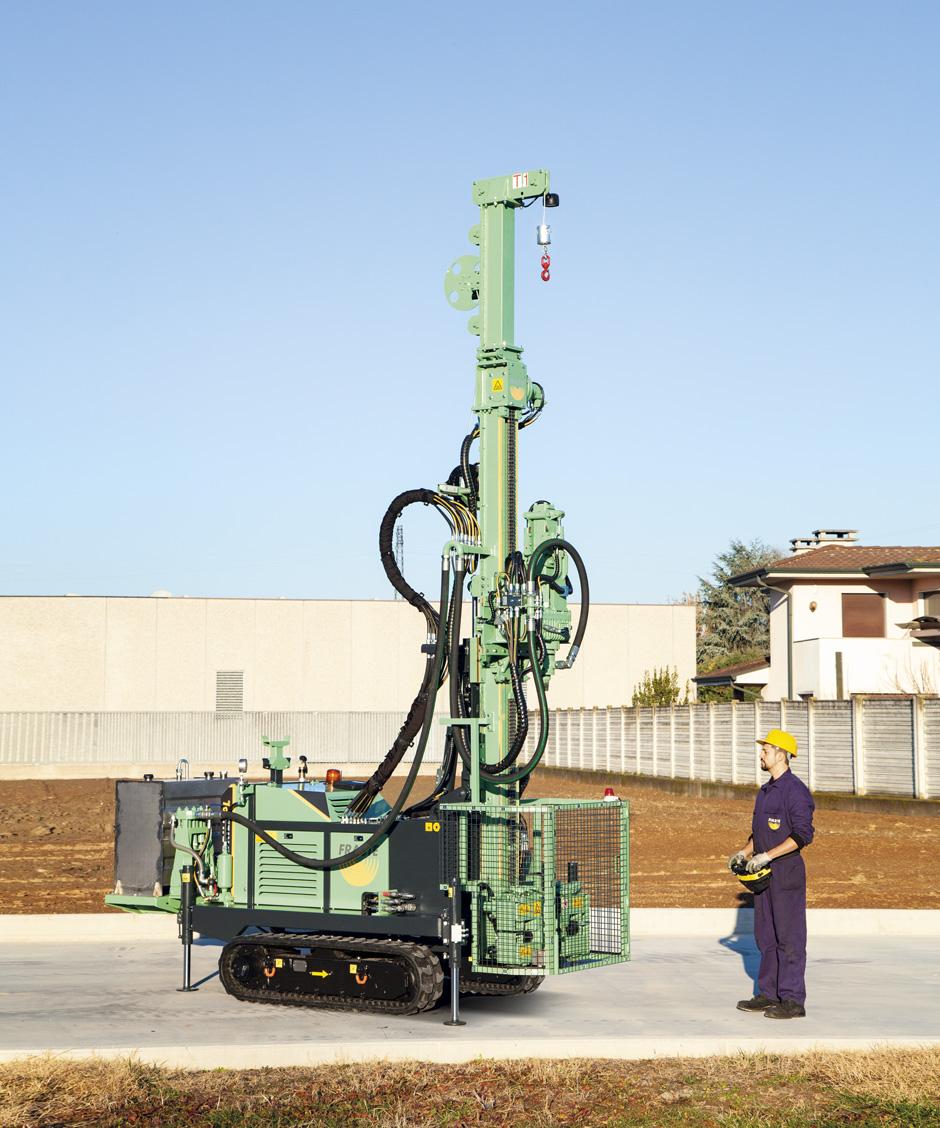

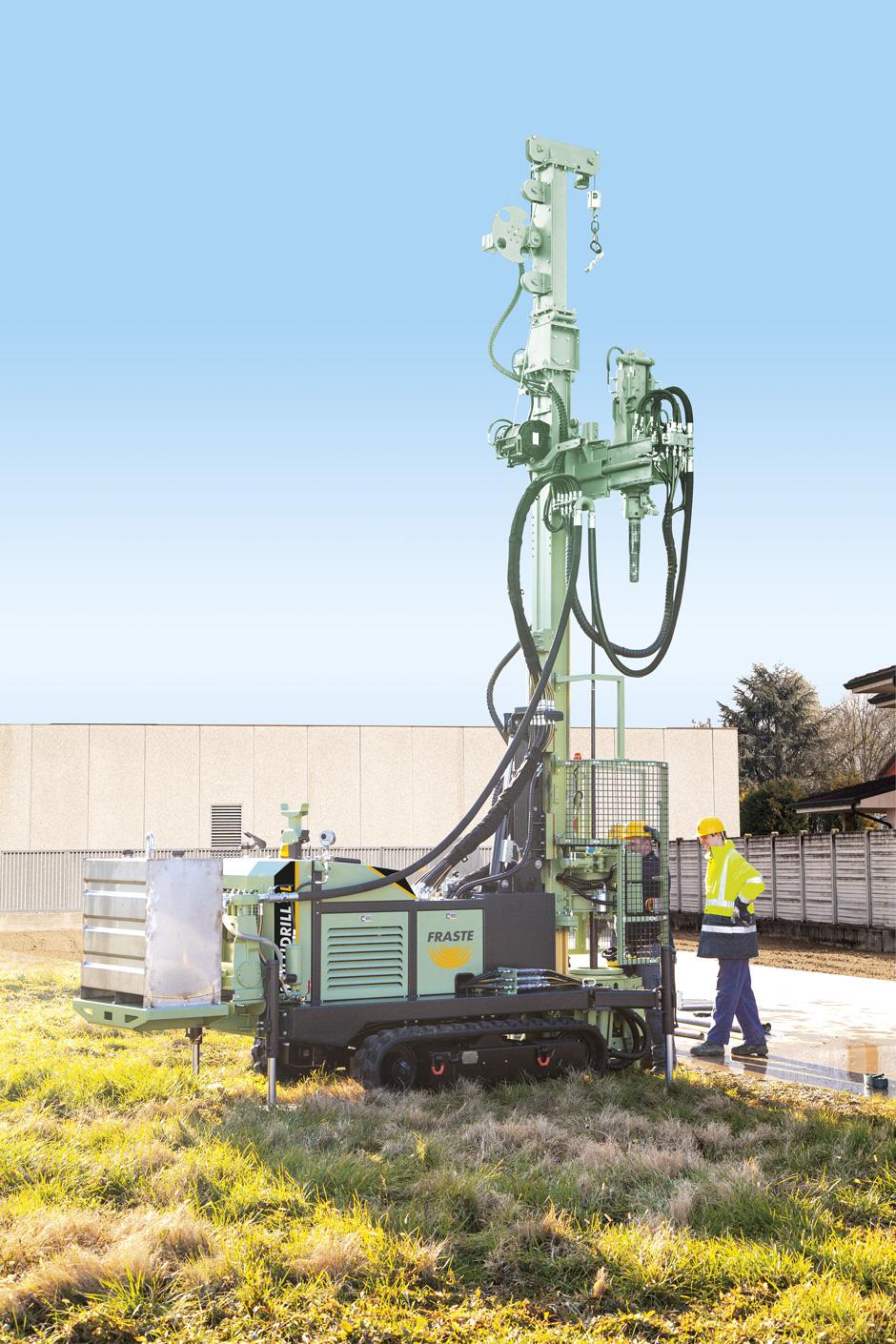

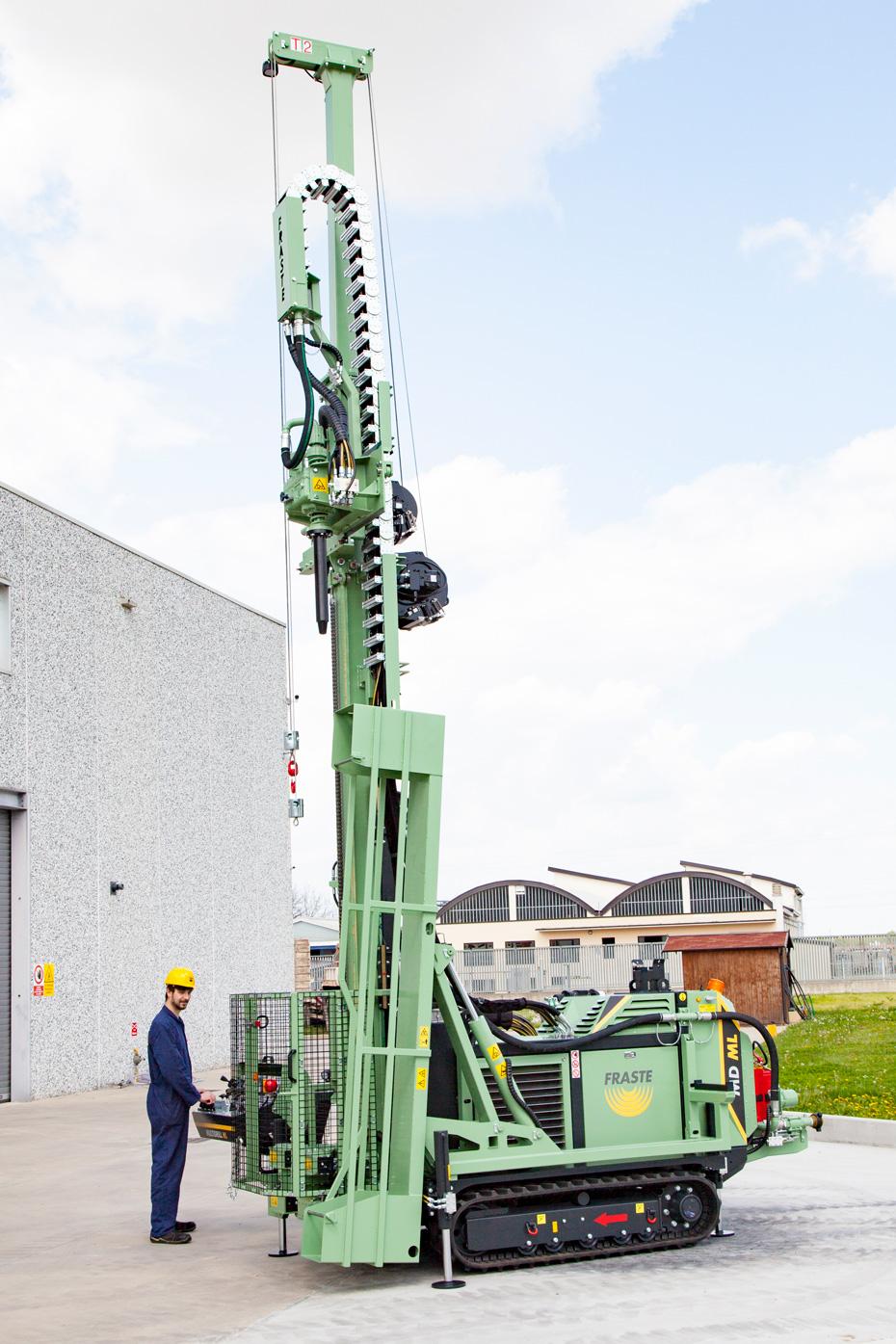

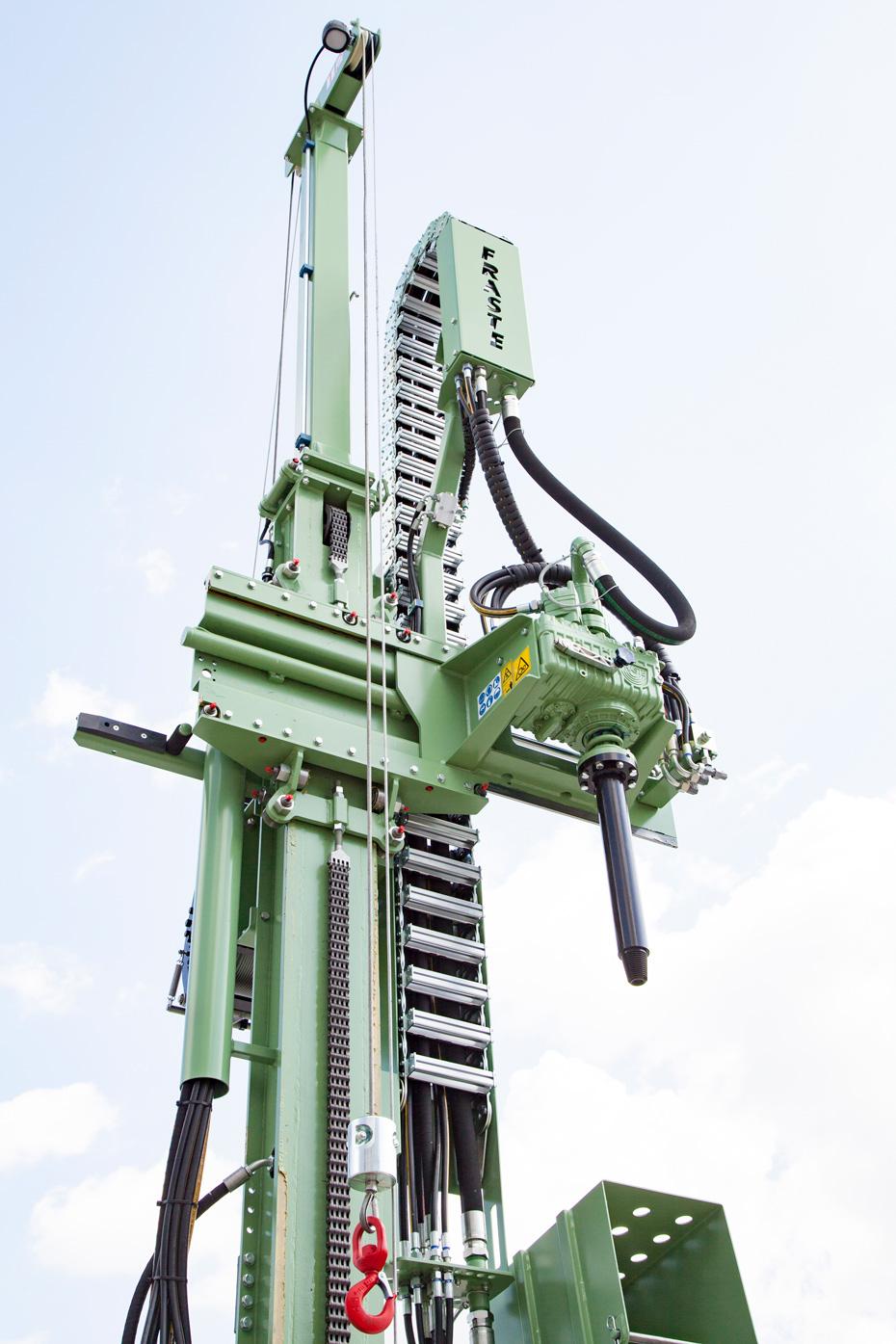

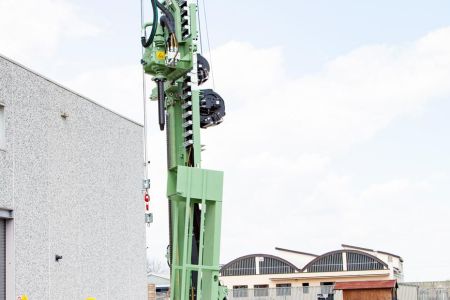

Fraste MultiDrill PL
The FRASTE MULTIDRILL PL is compact and agile; perfect for Foundations, Micropiles, Anchoring, Tie piles, Restorations, Geotechnical applications, Soil investigations, Diamond coring, Small-Medium Water wells.
Main frame with: strong structure for components assembly with four hydraulic stabilizers; it includes the most advanced and developed mechanical and hydraulic technologies for an easy use/maintenance. Safety and environment respect under current lows.

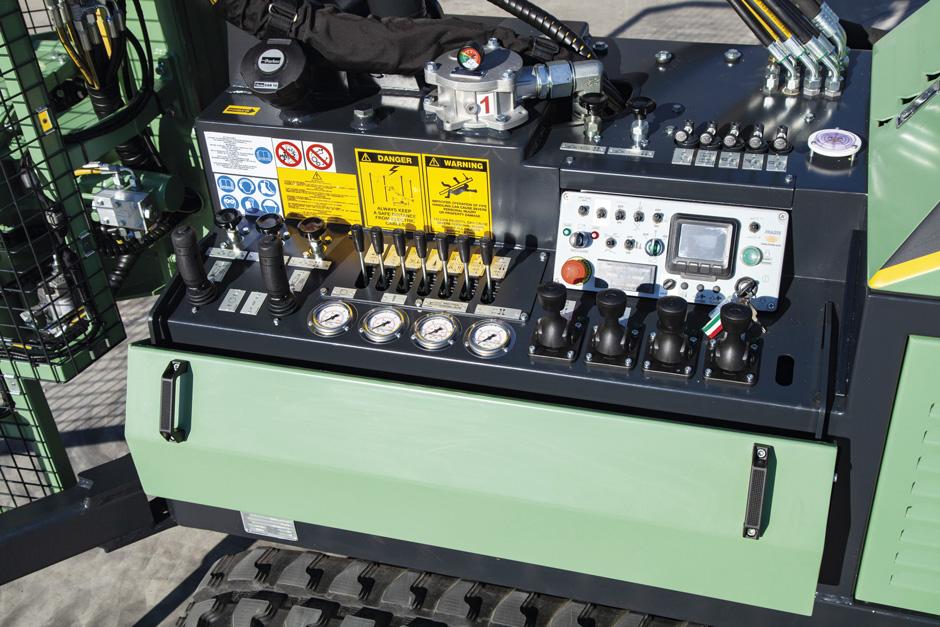

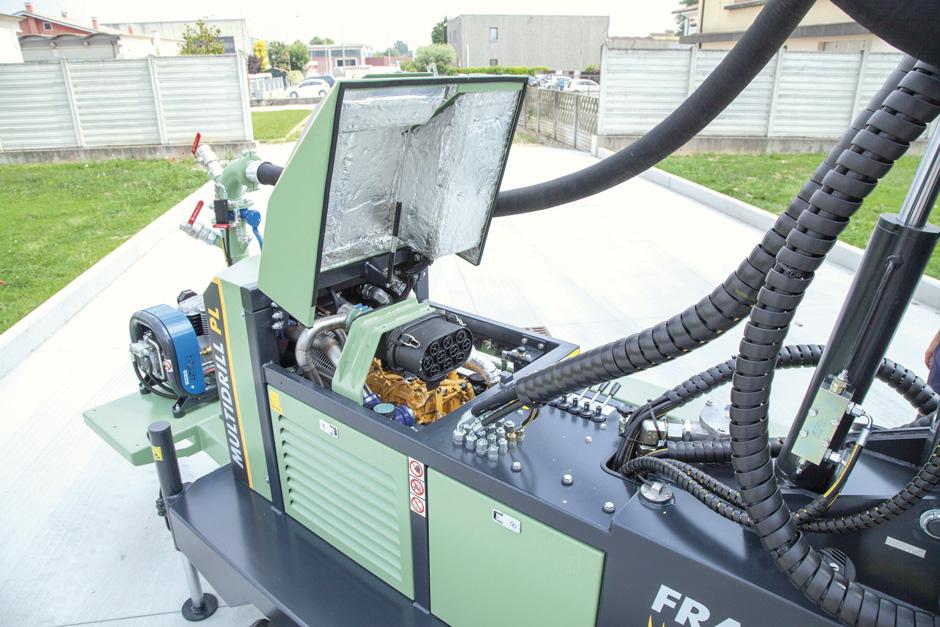

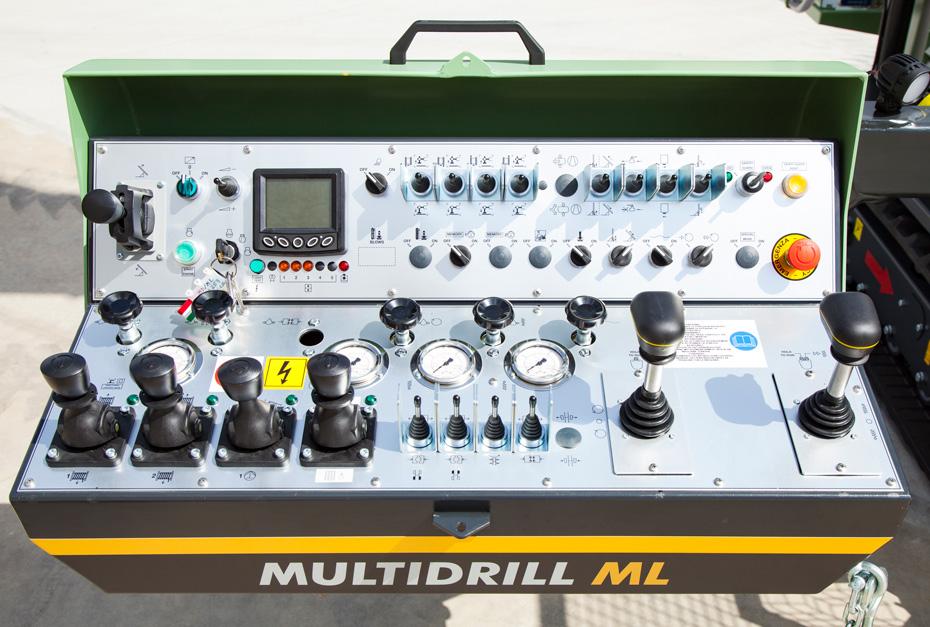

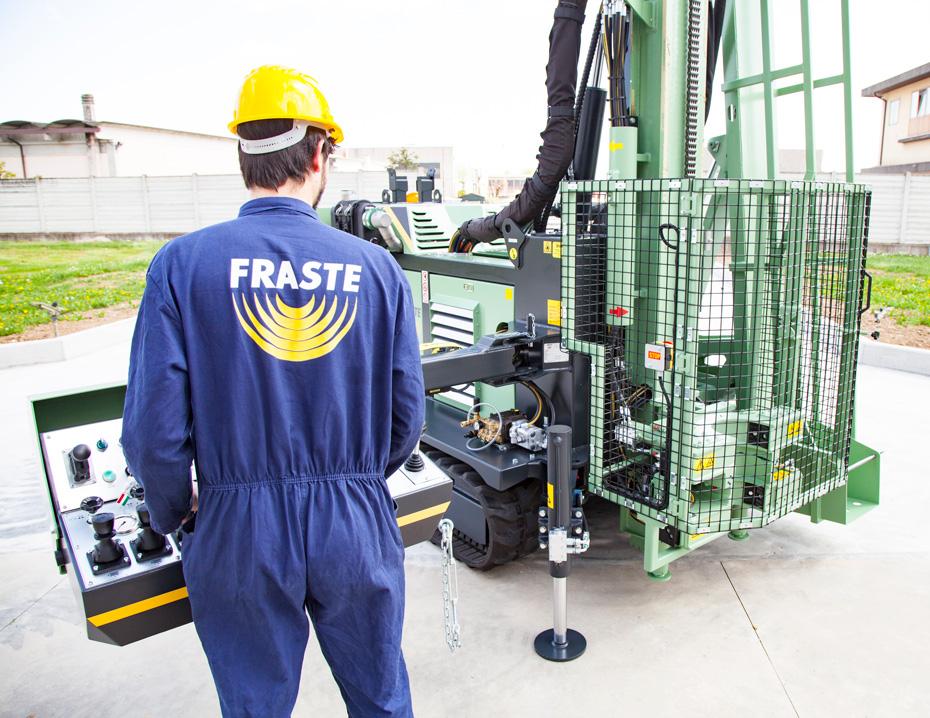

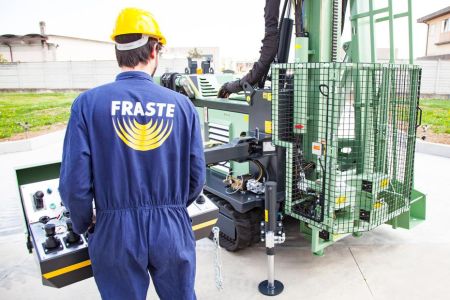

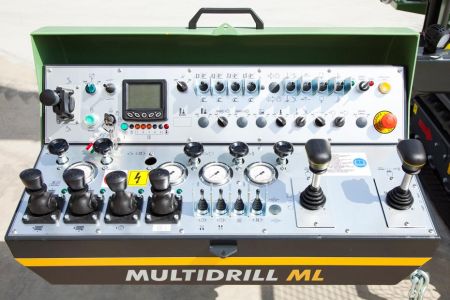

The control panel includes the general electric board and the whole rig and diesel engine instrumentation. Last generation diesel engine: strong power unit with high performances, low emissions and noise. Productive Load Sensing hydraulic system with variable delivery LS piston pump that feeds the proportional distributor for the drilling functions. Gear pump for services and positioning operations.

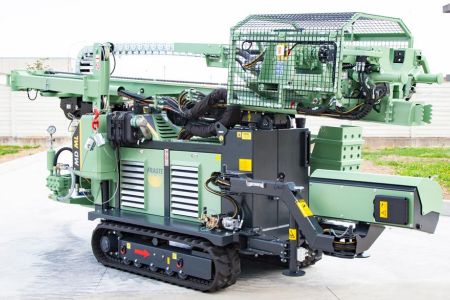

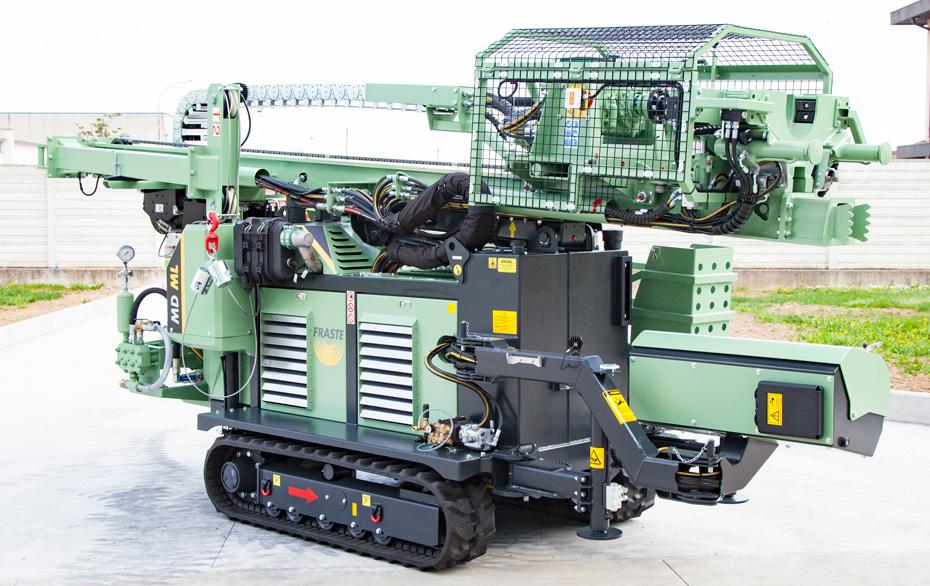

Heating exchanger filters on inlet and return lines - 10 micron absolute filtering system. Pre-arrangement for the radio control of drilling functions included. Rubber crawler carrier with variable track. Standard radio control included.
|
Power |
49,2 Kw (66,1 Hp) TIER 4 I - TIER 4 F |
|
|

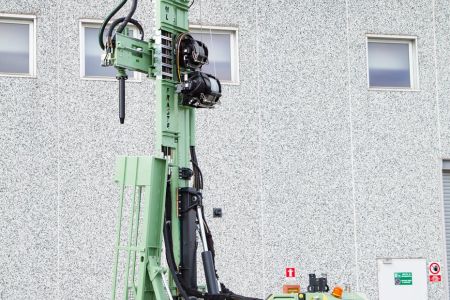

Rotary head stroke |
2500 - 3500 mm (8,2 - 11,5 ft) |
|
|
Pull-up |
4000 daN (8992 lbf) |
|
|
Pull-down |
4000 daN (8992 lbf) |
|
|

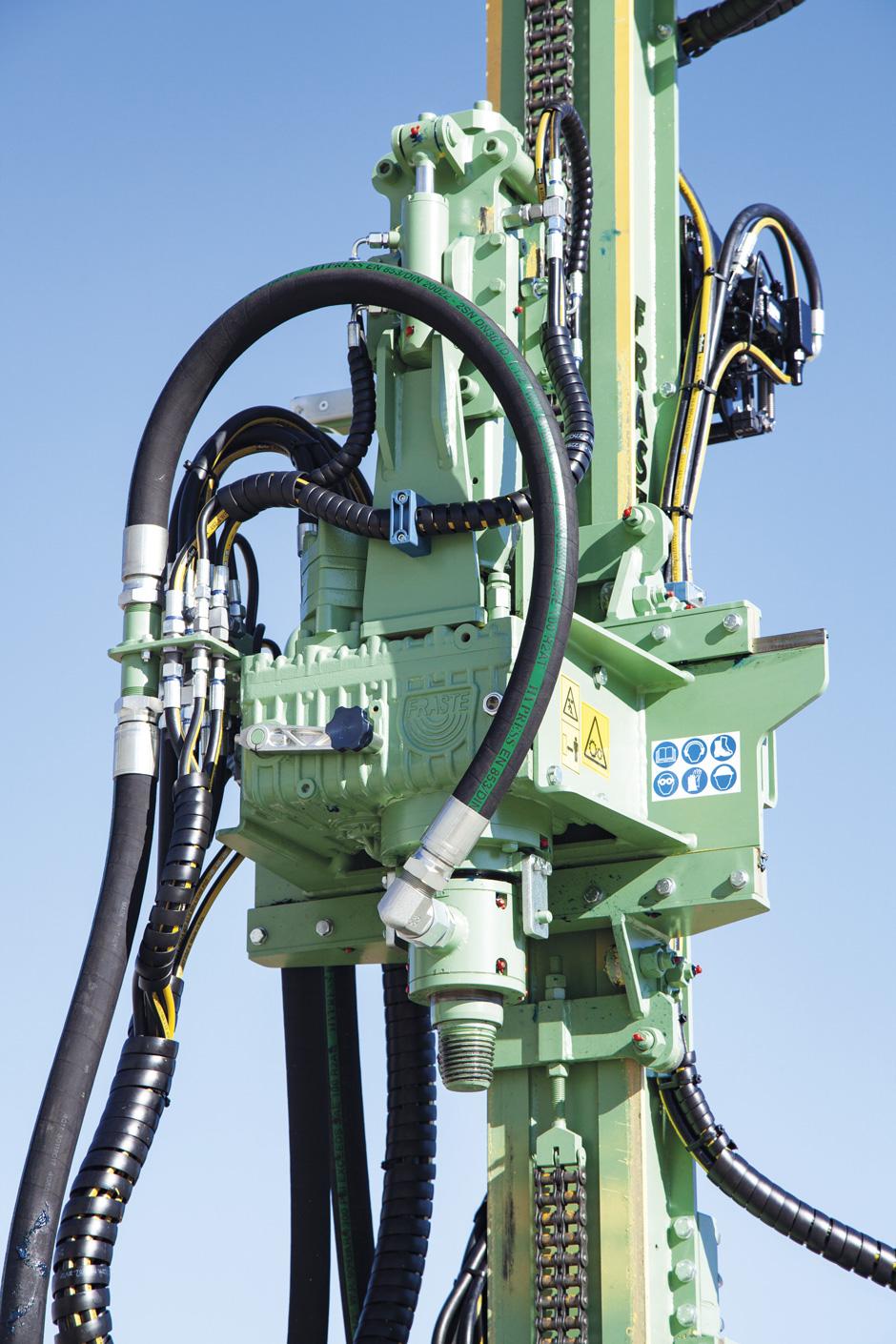

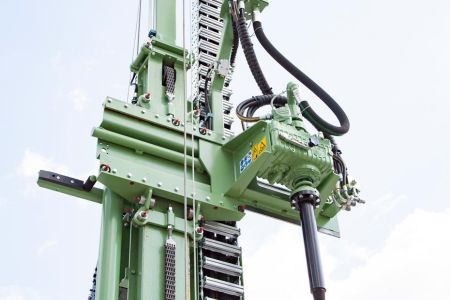

Max rotary head torque |
720 daNm (5310 ft lbf) |
|
|
Max rotary head speed |
1100 rpm |
|
|

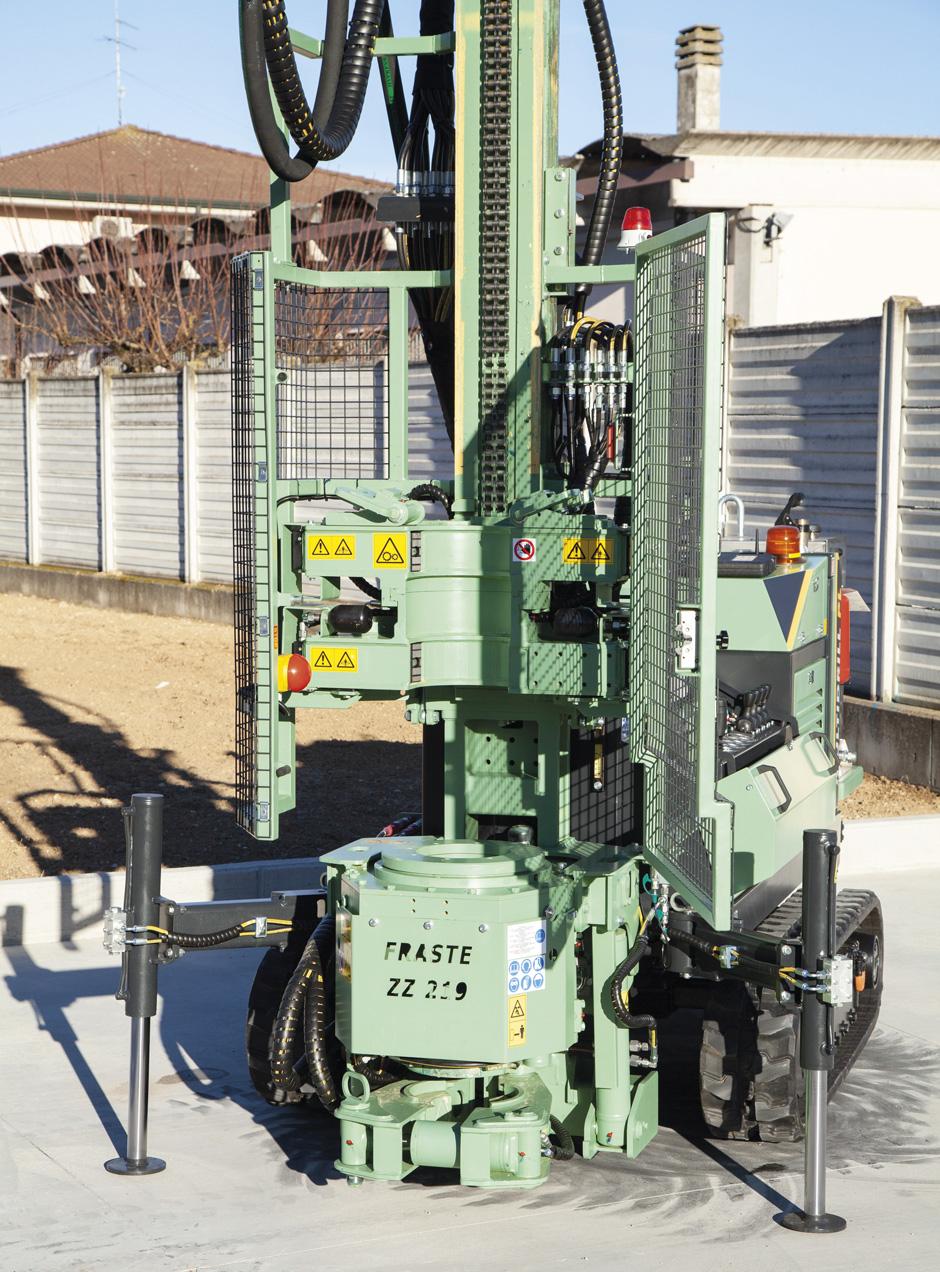

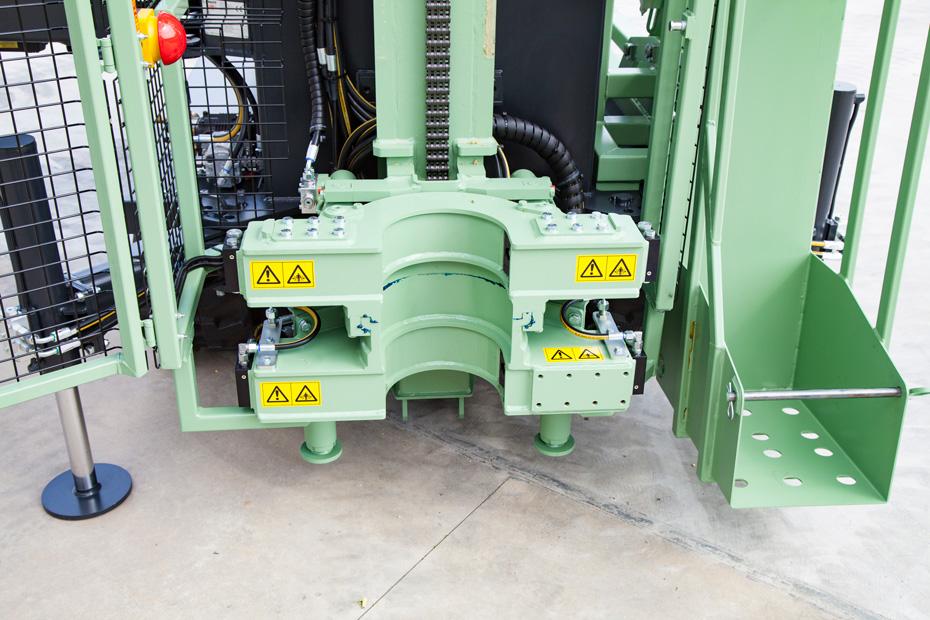

Clamp |
Ø 40-250 mm (1,6"-10") |
|
|
Weight |
~ 3700 Kg (~ 8157 lb) |
|

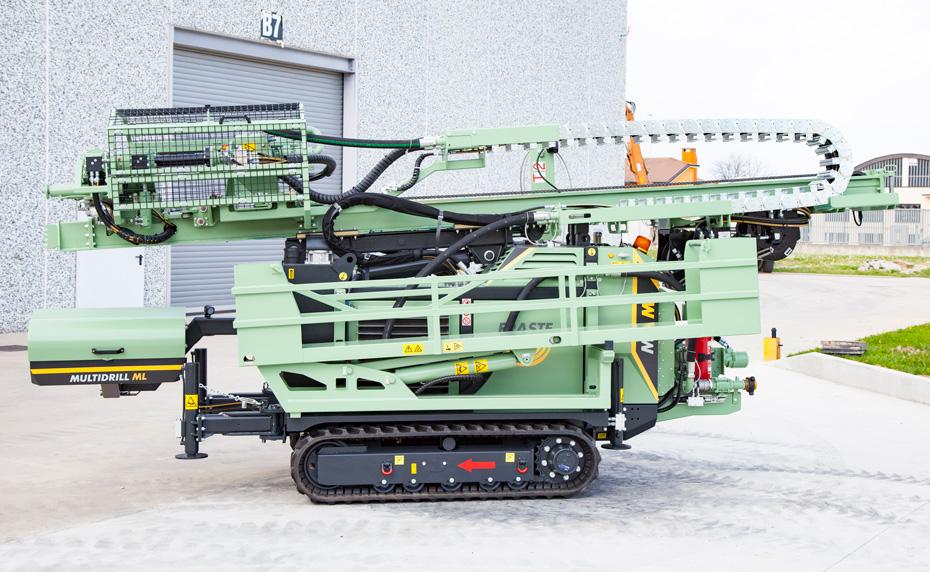

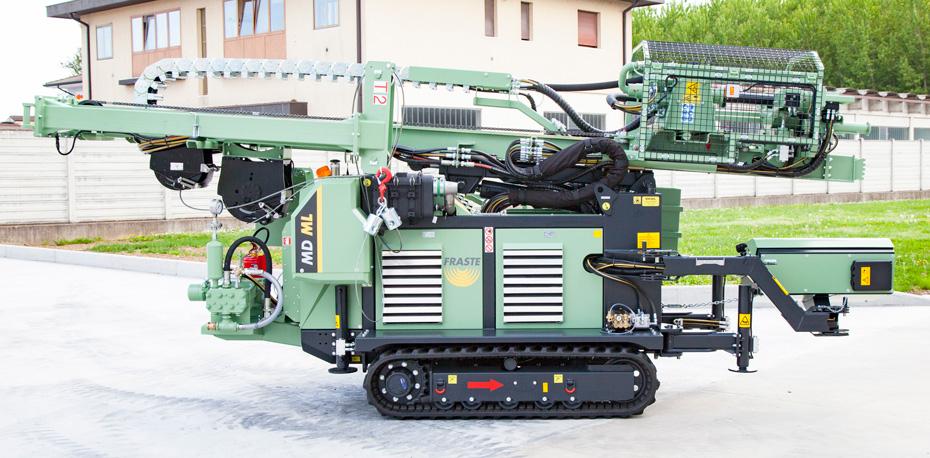

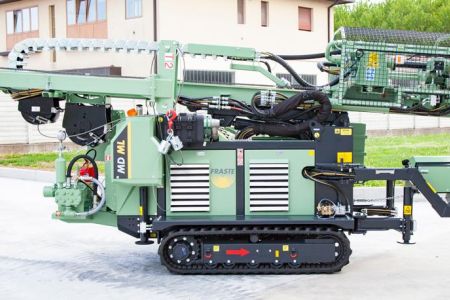

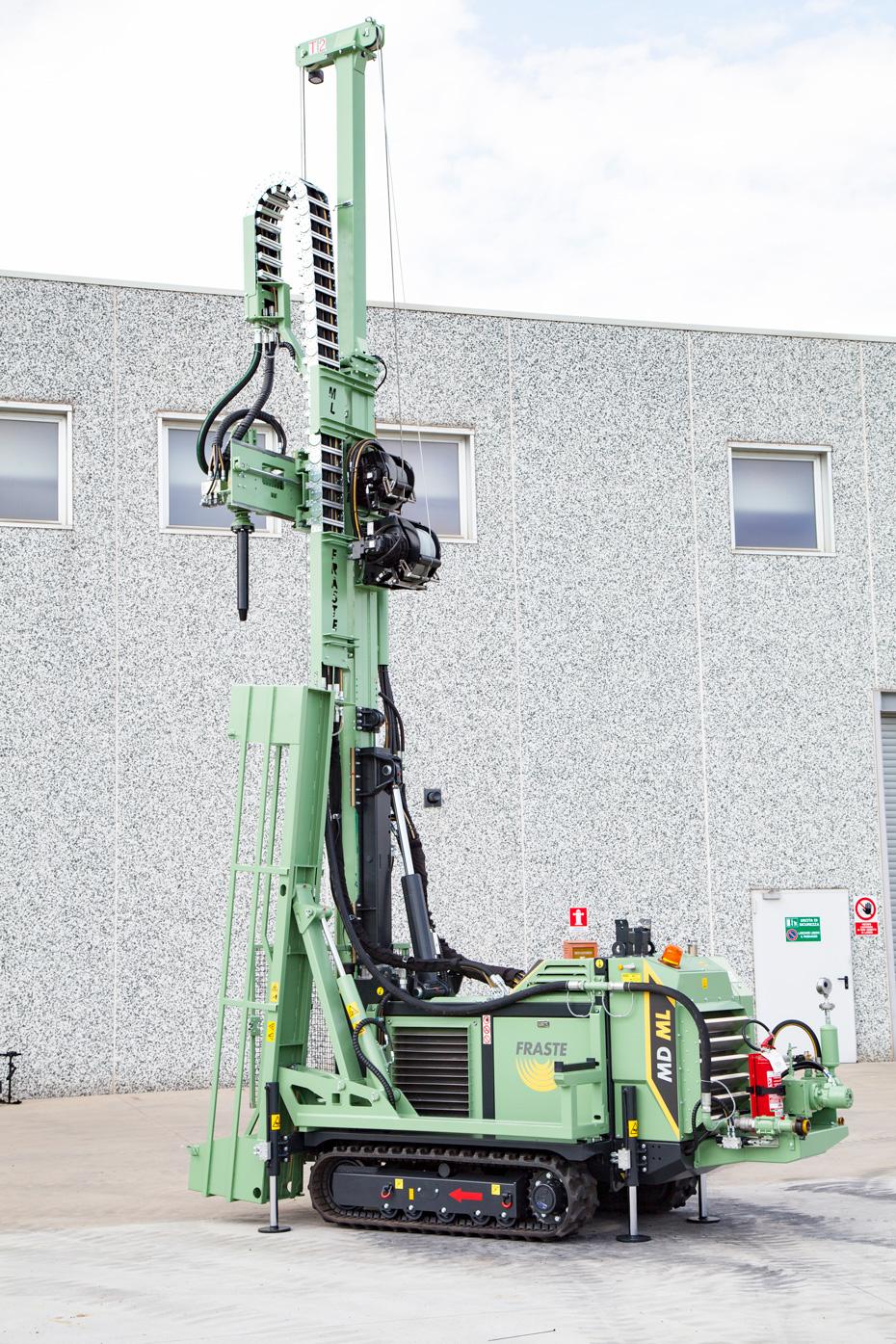

Other Rigs
