Fraste MultiDrill ML

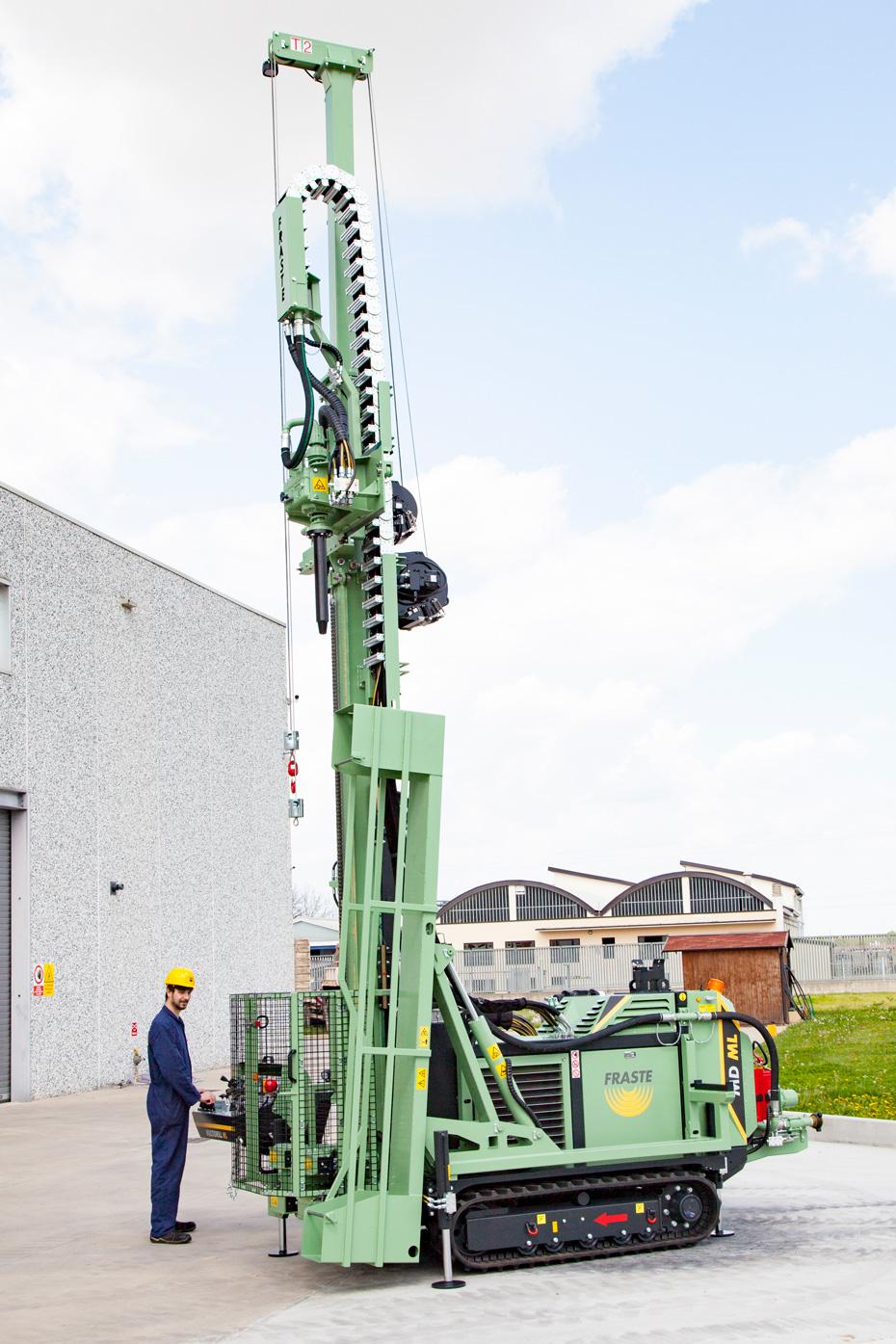

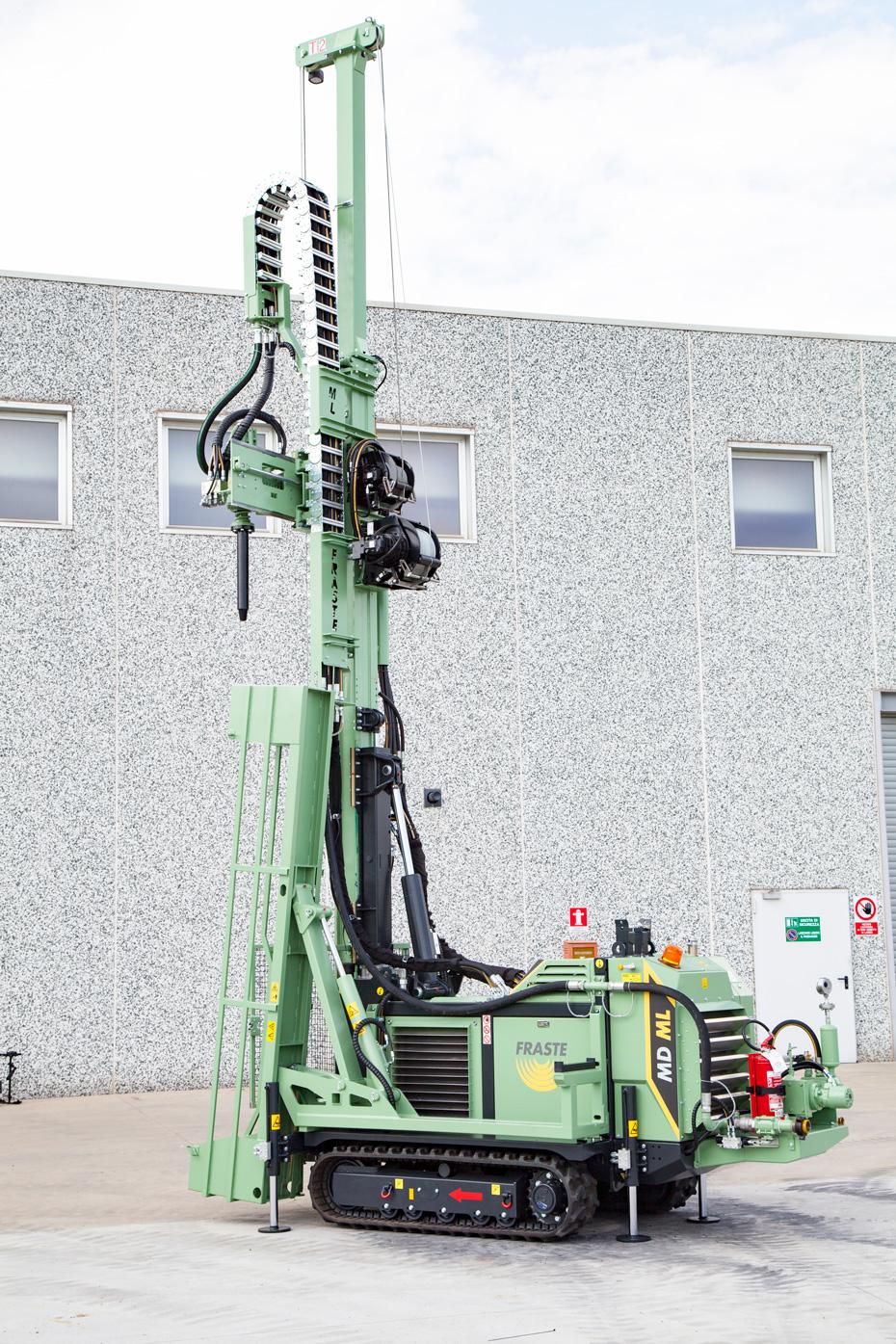

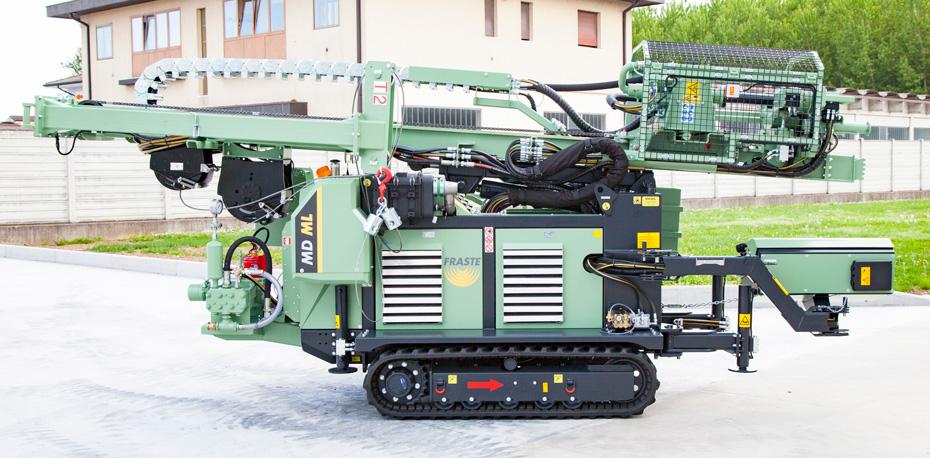

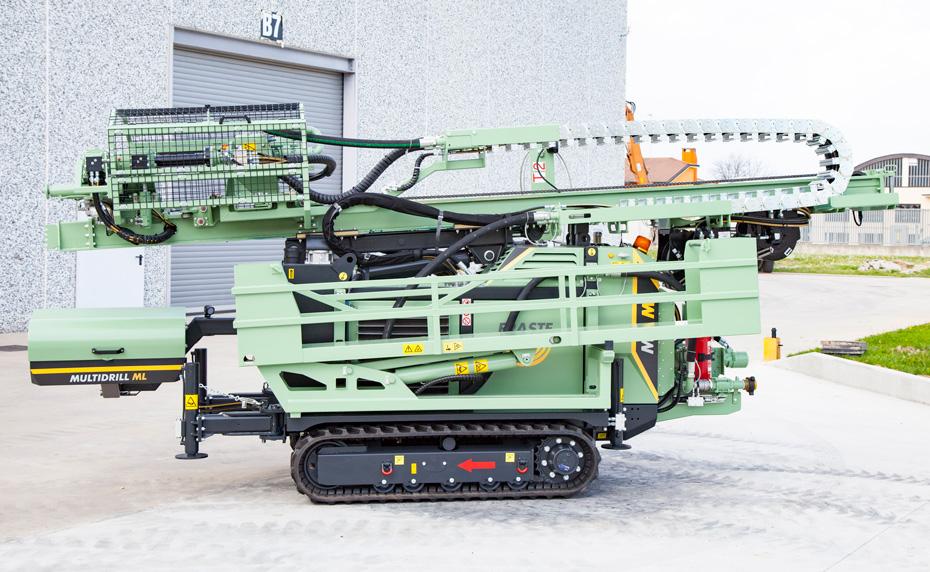

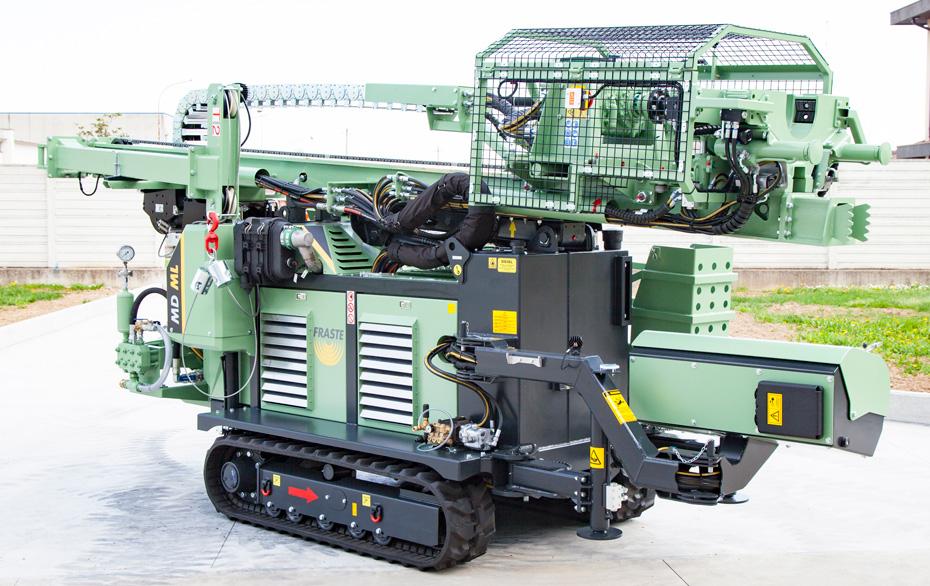

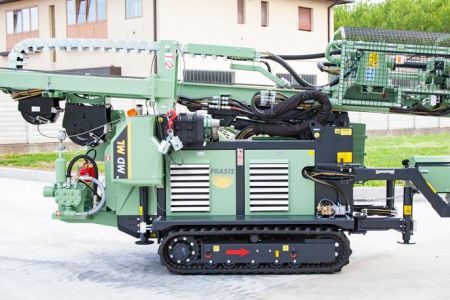

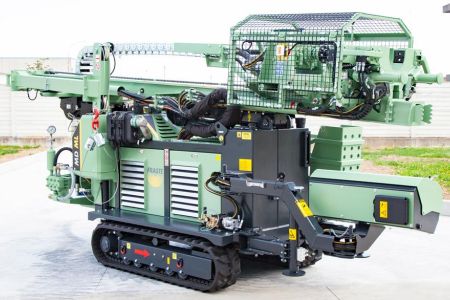

FRASTE MULTIDRILL ML Drilling Rig – Efficient, Fast, Great Reliability, Top Productivity rate. Its compact size and high performances allow a large and multipurpose field of application among: soil investigation, environmental monitoring and water wells drilling.

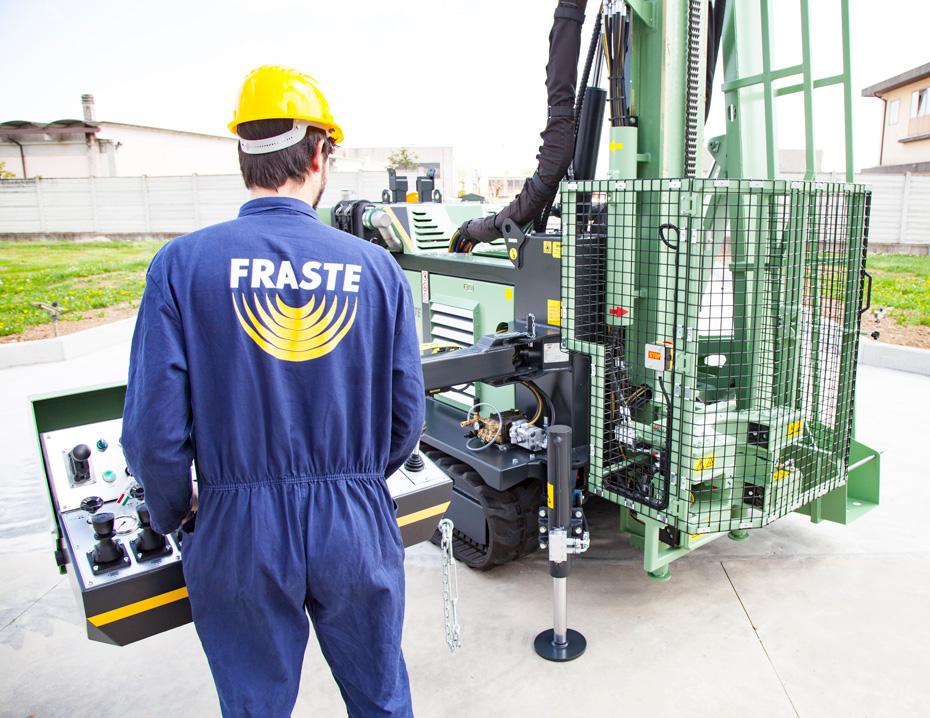

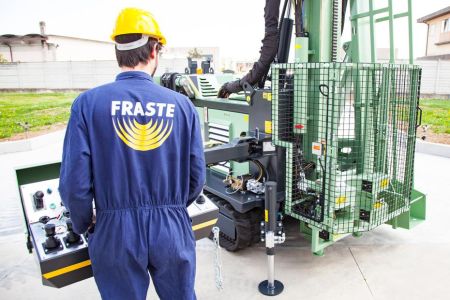

Fresh design, Stage 4 Final engines, first quality components and great care dedicated to operator safety allow the MULTIDRILL ML to easily work with all drilling systems: rotary drilling with direct/reverse fluid or air circulation; DTH hammer; roto-percussion system; conventional and wire-line coring. Wide range of drilling tools and accessories are available to meet with any drilling need.
|
Power |
74 Kw (100 Hp) TIER 3 - 90 Kw (120 Hp)TIER 4 F | |
|

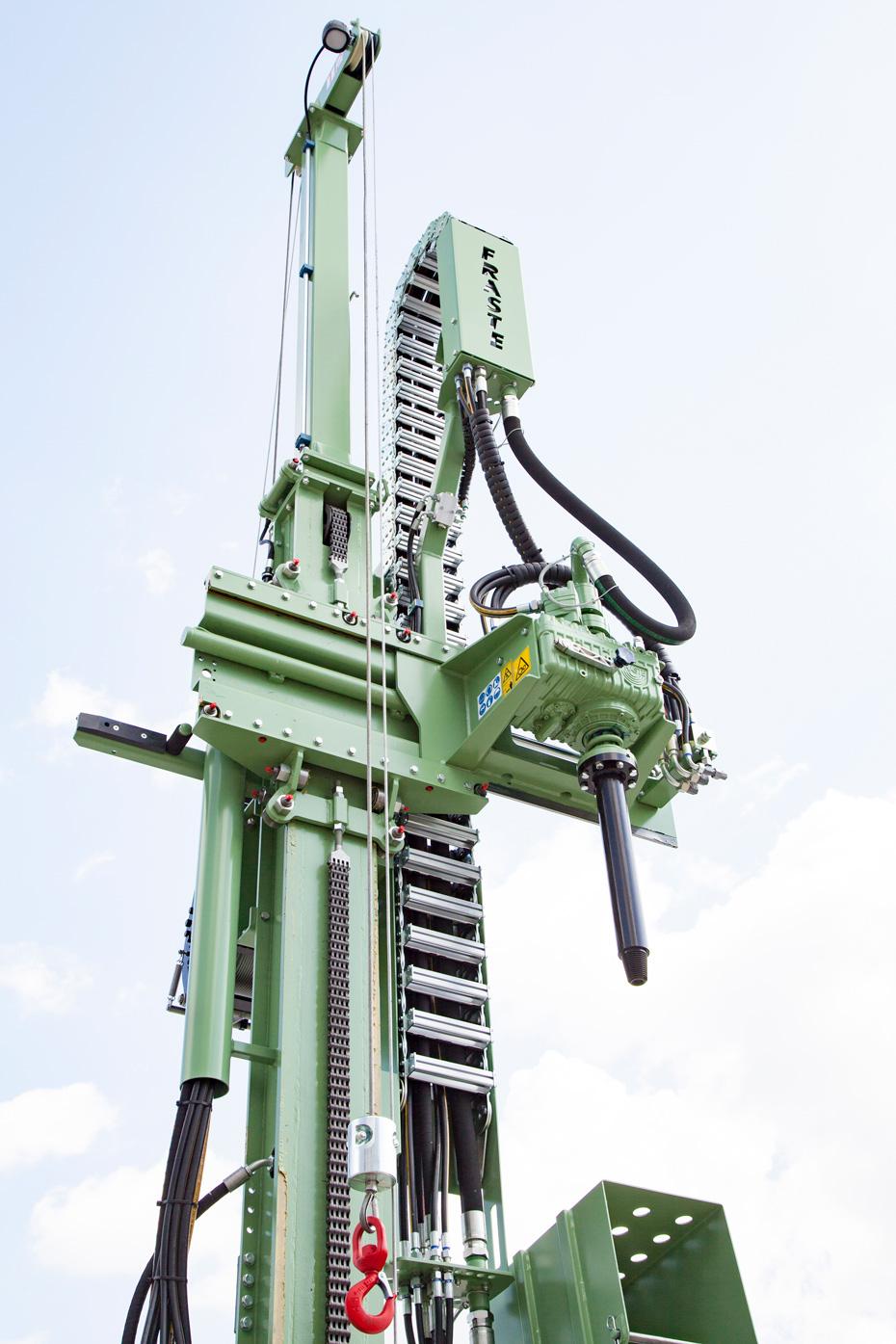

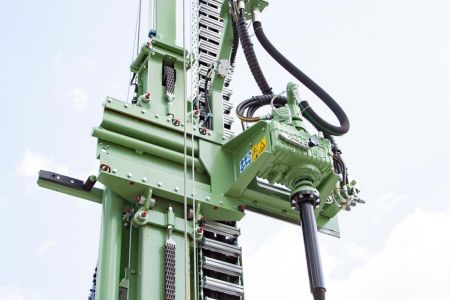

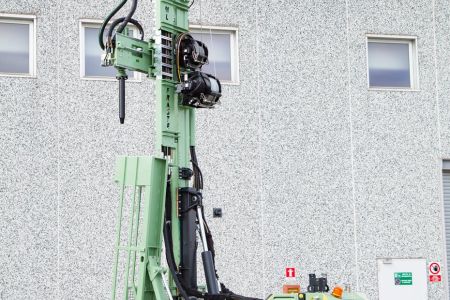

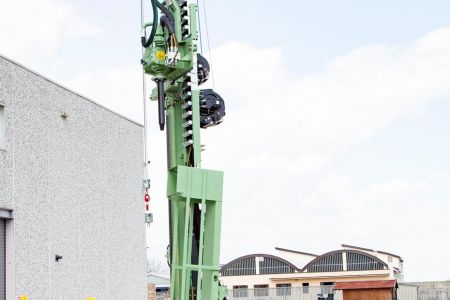

Rotary head stroke |
3500 mm (11,5 ft) |
|
|
Pull-up |
6000 daN (13488 lbf) |
|
|
Pull-down |
3500 daN (7868 lbf) |
|
|
Max rotary head torque |
900 daNm (6638 ft lbf) |
|
|
Max rotary head speed |
1220 rpm |
|
|

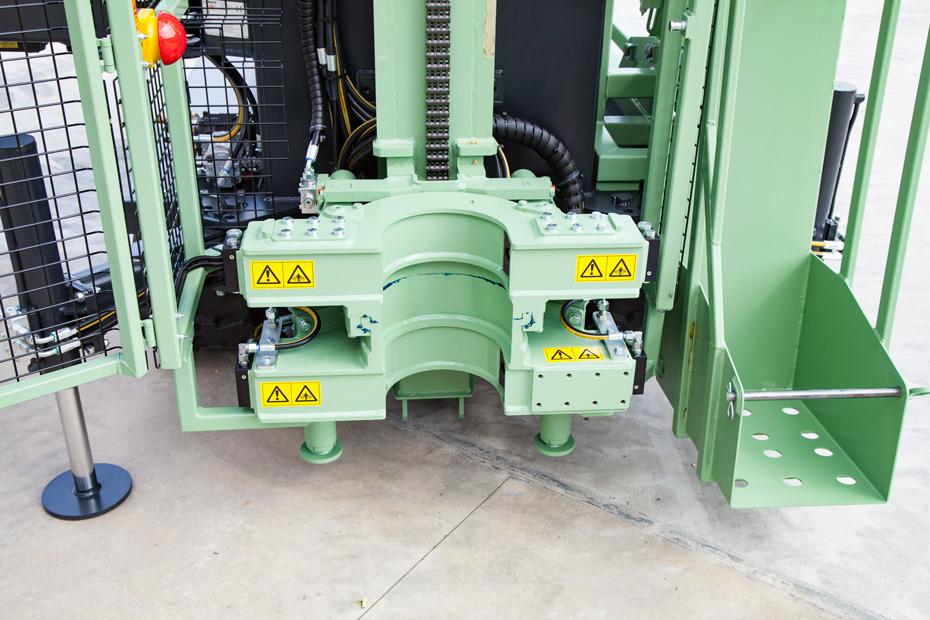

Clamp |
Ø 40-250 mm (1,6"-10") |
|
|
Weight |
~ 5700 Kg (~ 12566 lb) |
|
